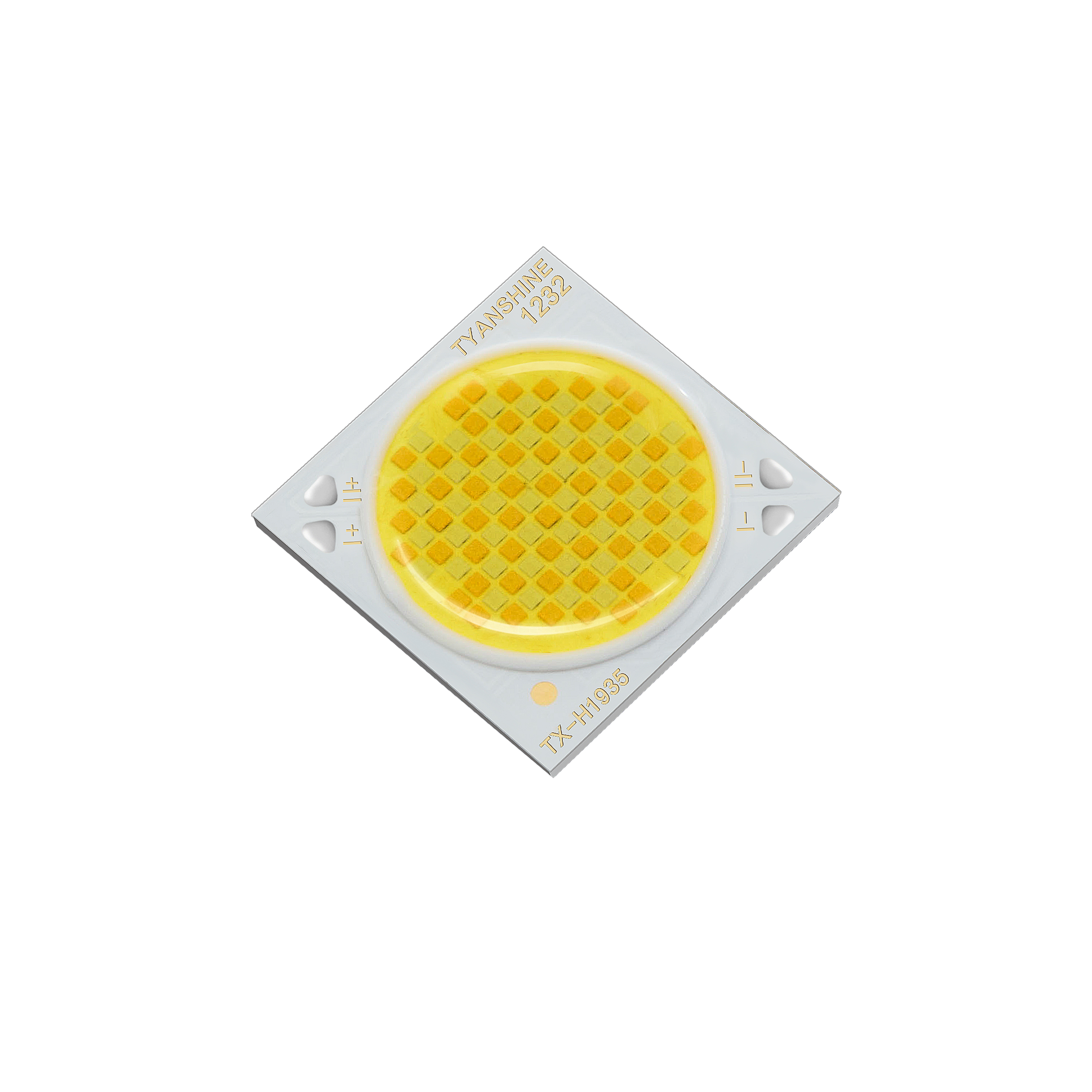

TX-H1935

Home Products New Product Release

Specifications

Relevant attachments

Product Features

· Double phosphor coating technology, excellent color-mixing
· Mac-Adam ellipse 3 step binning, high color consistency
· High light quality, anti-glare
· Fast thermal conductivity substrate, lower resistance

Application Area

Commercial lighting / Residential lighting / Smart lighting
spot lights,down lights, ceiling lights, tracking lights
Photography lighting Fresnels lights
RoHS REACH
Characteristics Unit Typical MAXIMUM
Viewing Angle(FWHM) degree 115
DC Forward Current mA 1050 1600
Forward Voltag V 34 36
Thermal Resistance K/W 0.21
Typ. Spec
CCT(K) Lumen(Lm) Ra Current(mA)
I:2700 3100-3900 90 1050
II:5700 3700-4600 90 1050
I:2700 2650-3300 95 1050
II:5700 3250-4000 95 1050
