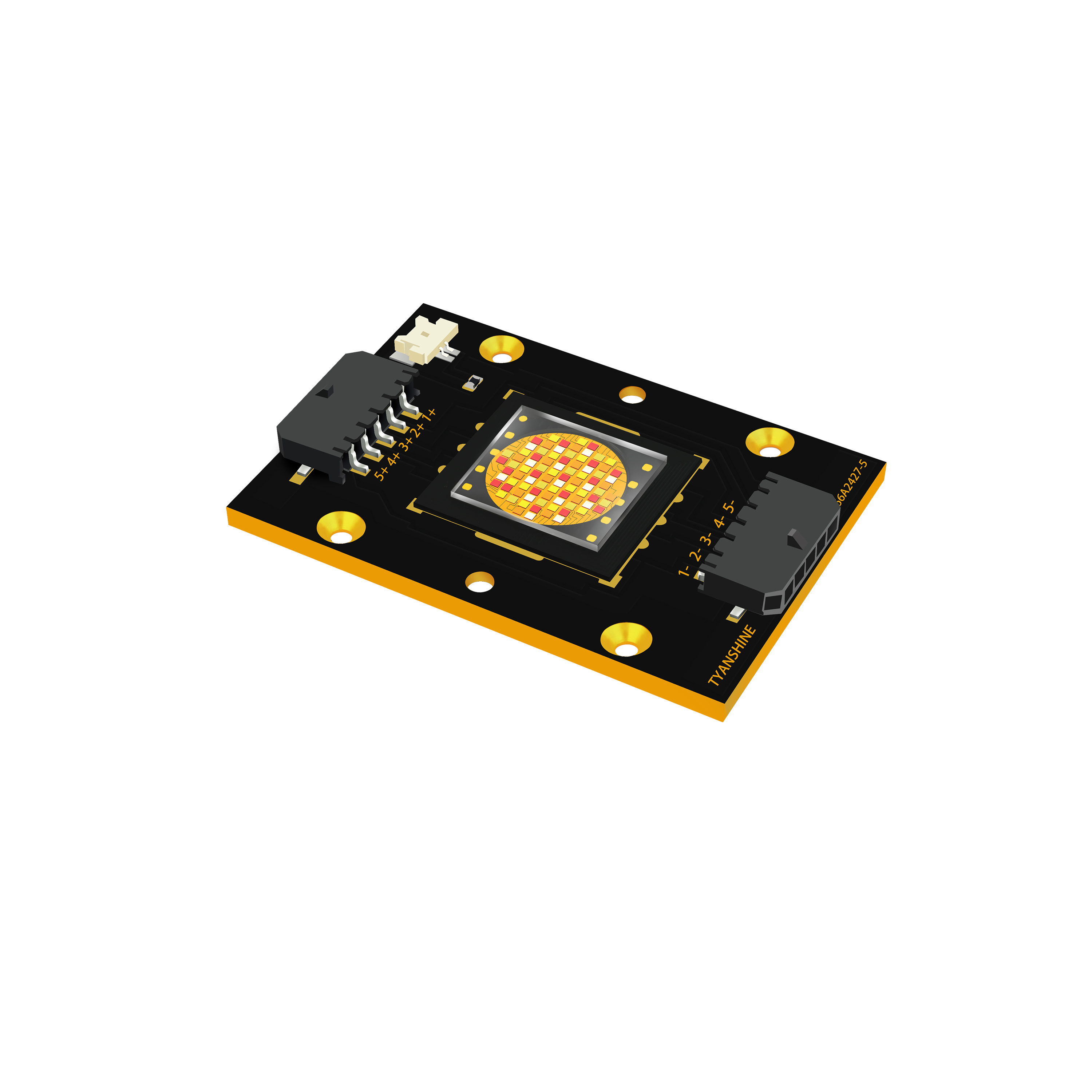

4566RGBLA500

Home Products New Product Release

Specifications

Relevant attachments

Product Features

Compact LES with high light density, upto 5W/mm²
Latest advanced phosphor technology, high color consistency
Thermal-electric isolation copper substrate, safe & stable
Intersecting distribution of 5 colors, optimized color-mixing

Application Area

Entertainment lighting
Architectural lighting
Medical illumination, Fiber Optics
Event lighting
Stage lighting Projection
RoHS REACH
Typ. Spec
Color DWL(nm) Lumen(lm) IF=1500mA Current(mA) Voltage(V) Thermal Resistance(K/W)
Red 618-628 2100-2500 1800 47-50 0.15
Green 520-530 4800-5500 1800 53-55 0.18
Blue 450-460 850-1050 2400 47-50 0.15
Lemon 565-569 4300-5500 2000 47-50 0.15
Amber 1840-1965K 2700-3200 2000 47-50 0.15
