TX-1825 25-30W 80CRI

Home Products Product Center

Specifications

TX-1825SW14A-2860V36-10H80 WKF-BF0336[View online]

Relevant attachments

REACH for TunableWhite COB LED Series[View online]
RoHS for TunableWhite COB LED Series(AL PCB)[View online]
RoHS for TunableWhite COB LED Series(CU PCB)[View online]
VOC Report with White INK[View online]

Product Features

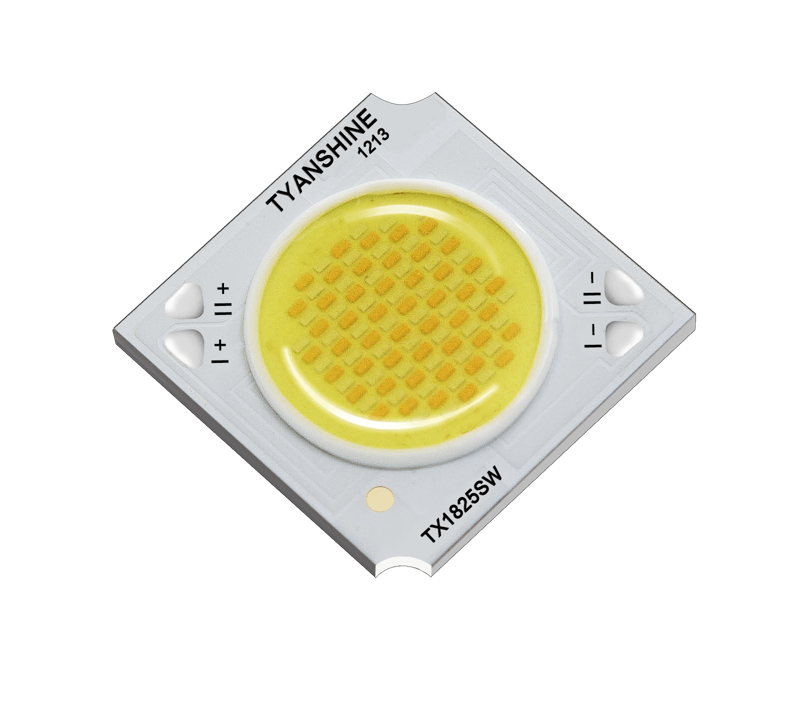

Tunable White Cob
· Double phosphor coating technology, excellent color-mixing
· Mac-Adam ellipse 3 step binning, high color consistency
· High light quality, anti-glare
· CCT Customizable

Application Area

Commercial lighting / Residential lighting / Smart lighting
spot lights,down lights, ceiling lights, tracking lights
Photography lighting Fresnels lights

RoHS REACH

Characteristics	Unit	Typical	MAXIMUM
Viewing Angle(FWHM)	degree	115
DC Forward Current	mA	700	800
Forward Voltag	V	36	38
Thermal Resistance	K/W	0.53
Light Emitting Surface	mm	Φ13.8

Typ. Spec

CCT(K)	Lumen(Lm)	Ra	Current(mA)
I:2700	2250-2750	80	700
II:6000	2610-3190	80	700
