TX2020（R/G/B/L/A/C/W）3

Home Products Product Center

Specifications

Relevant attachments

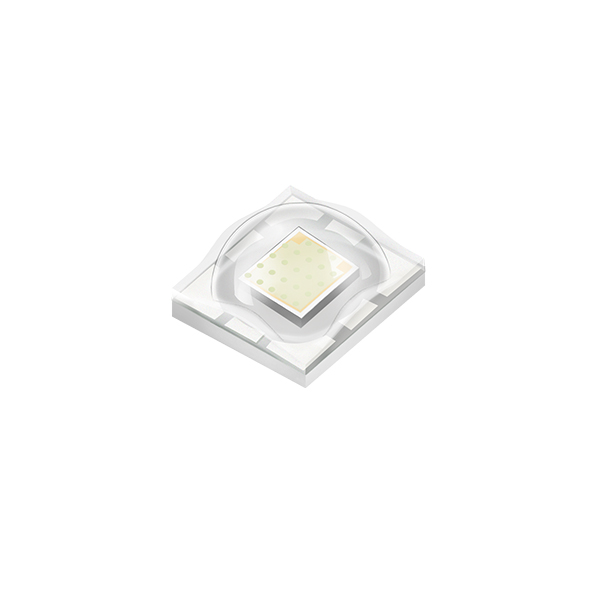

RoHS for Colours SMD LED Series(Ceramic base with Dome Lens)[View online]

Product Features

· Ceramic PKG, eutectic-bonding, thermal-electric isolation, fast heat conductivity
· Less Relative expansion coefficient, stable, good air-tightness for tough conditions
· Excellent color mixing effect

Application Area

Outdoor Landscape illumination & Architectural lighting
Liner light, wall-washer, flood light
Under-ground and under water light

RoHS REACH

Typ. Spec 3W

Color	DWL(nm)	Lumen(lm)	Current(mA)	Voltage(V)	Ra
Red	620-625	65-80	1000	2.0-2.6	/
Green	525-535	130-155	1000	2.8-3.4	/
Blue	450-460	18-30	1000	2.8-3.4	/
Lemon	4060-4280L	155-185	1000	2.75-3.25	/
Amber	1770-1900K	100-125	1000	2.75-3.25	/
White	5500-6800K	145-170	1000	2.75-3.25	/
Neutral white	3780-4300K	130-160	1000	2.75-3.25	80
Warm white	2860-3130K	122-148	1000	2.75-3.25	80
