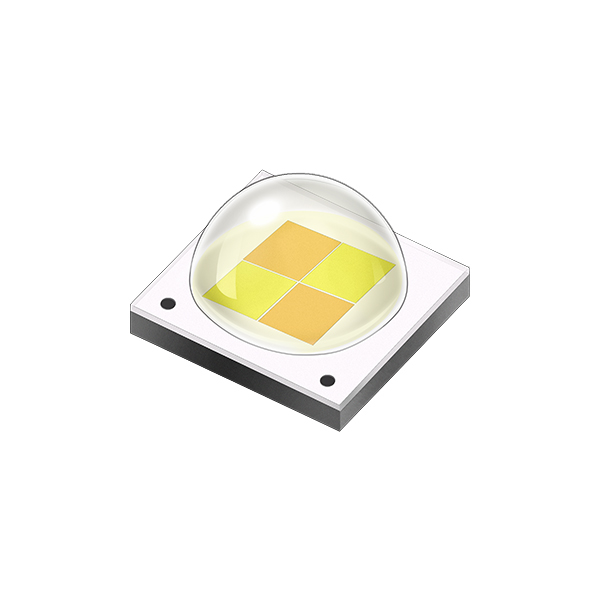

TX-5050WS 10W

Home Products Product Center

Specifications

Relevant attachments

Product Features

· Compact power LEDs, Individual quad chips, Small LES 2.1*2.1mm
· Vertical chips, higher thermal conductivity, easy light collection
· Ceramic PKG, eutectic-bonding, thermal isolation, fast conductivity · Bi-color 2700-6500K

Application Area

Beam wash, Moving panel
Matrix panel lights, Moving Heads panels
high-bay, indoor commercial or roadway lighting
Flashlight Head Light
RoHS REACH
Characteristics Unit Typical MAXIMUM
Viewing Angle Degree 120
Current mA 700 1000
Forward Voltag V 5.8 6.4
Thermal Resistance K/W 5.9
Typ. Spec
CCT(K) Lumen(Lm) Ra Current(mA)
W:5750-6600 430-530 90 700
S:2700-2800 350-400 90 700
