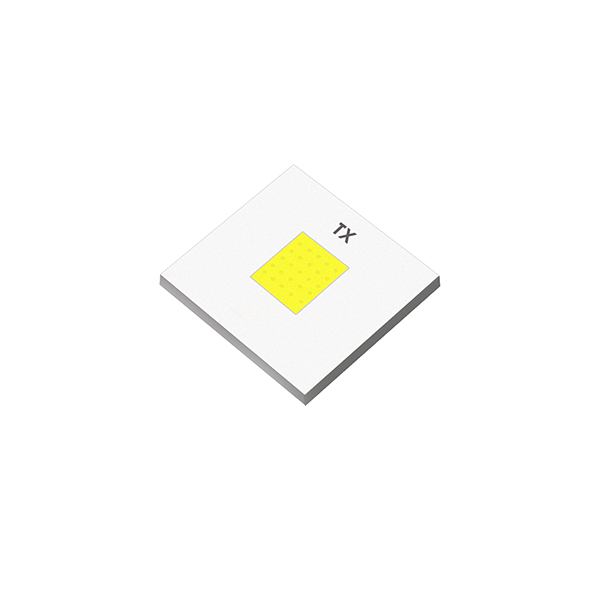

TX-3535 10W

Home Products Product Center

Specifications

Relevant attachments

Product Features

Special Note: This product effect will be better used with convex lens
Samll package with high light density
Compact package with high light density

Application Area

Outdoor Lights
Automotive lights
Ceramic eutectic package, extremely small internal stress and excellent thermal channel

Flip chip coating package, uniform and stable lumen output

The single light source uses a large power, providing high quality and high lumen output

RoHS REACH

Characteristics Unit Typical MAXIMUM
Viewing Angle(FWHM) degree 120
DC Forward Current mA 1000 3500
Forward Voltag V 2.75 3.5
Thermal Resistance K/W 2.7

Typ. Specs
CCT(K) Lumen(Lm) Ra Current(mA)
4800-5200 300-380 70 1000
