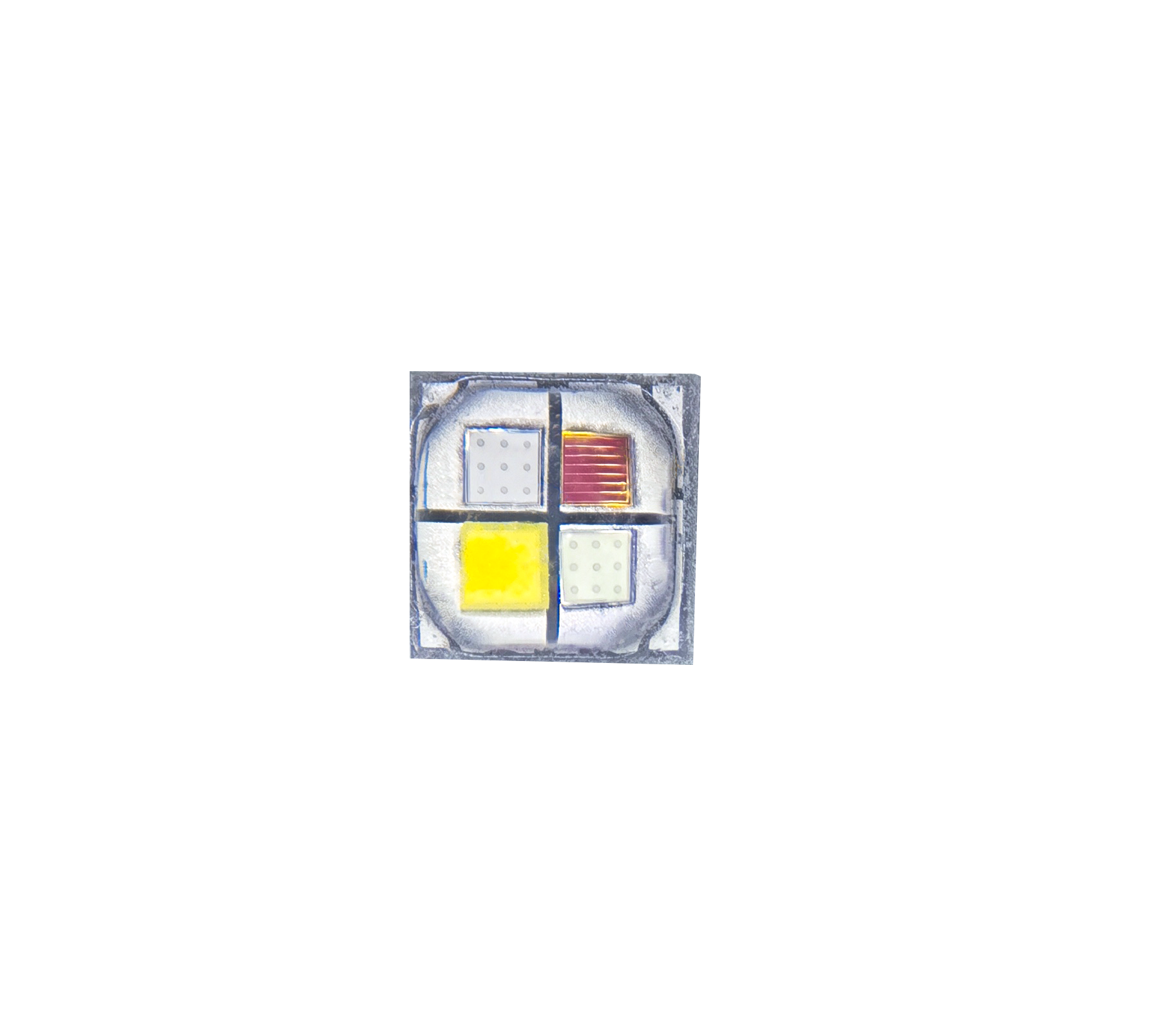

TX3535RGBW 8/10W

Home Products Product Center

Specifications

Relevant attachments

Product Features

· Ceramic PKG, eutectic-bonding, thermal-electric isolation, fast heat conductivity
· Less Relative expansion coefficient, stable, good air-tightness for tough conditions
· RGBW 4 in 1, Excellent color mixing effect

Application Area

Outdoor Landscape illumination & Architectural lighting: Liner light, wall-washer, flood light, Under-ground and under water light
Entertainment lighting/Stage lighting: Matrix panel lights, Moving Heads panels, Par cans lights

RoHS REACH LM-80

Typ. Spec TX3535RGBW8

Color	DWL(nm)	Lumen(lm)	Current(mA)	Voltage(V)	Ra
Red	620-625	40-55	800	2.0-2.5	/
Green	522-532	165-200	800	2.9-3.4	/
Blue	465-470	45-60	800	2.9-3.4	/
White	6000-7000K	205-245	800	2.9-3.4	/
Neufral white	3650-4150K	160-210	800	2.9-3.4	80
Warm White	2850-3130K	140-165	800	2.9-3.4	80

RoHS REACH LM-80

Typ. Spec TX3535RGBW10

Color	DWL(nm)	Lumen(lm)	Current(mA)	Voltage(V)	Ra
Red	620-630	115-145	1200	2.1-2.6	/
Green	522-532	190-235	1200	2.8-3.4	/
Blue	452-458	35-50	1200	2.9-3.5	/
White	6000-7000K	225-265	1200	2.9-3.5	80
Neufral white	3650-4150K	210-245	1200	2.9-3.5	80
Warm White	2850-3130K	185-235	1200	2.9-3.5	80
