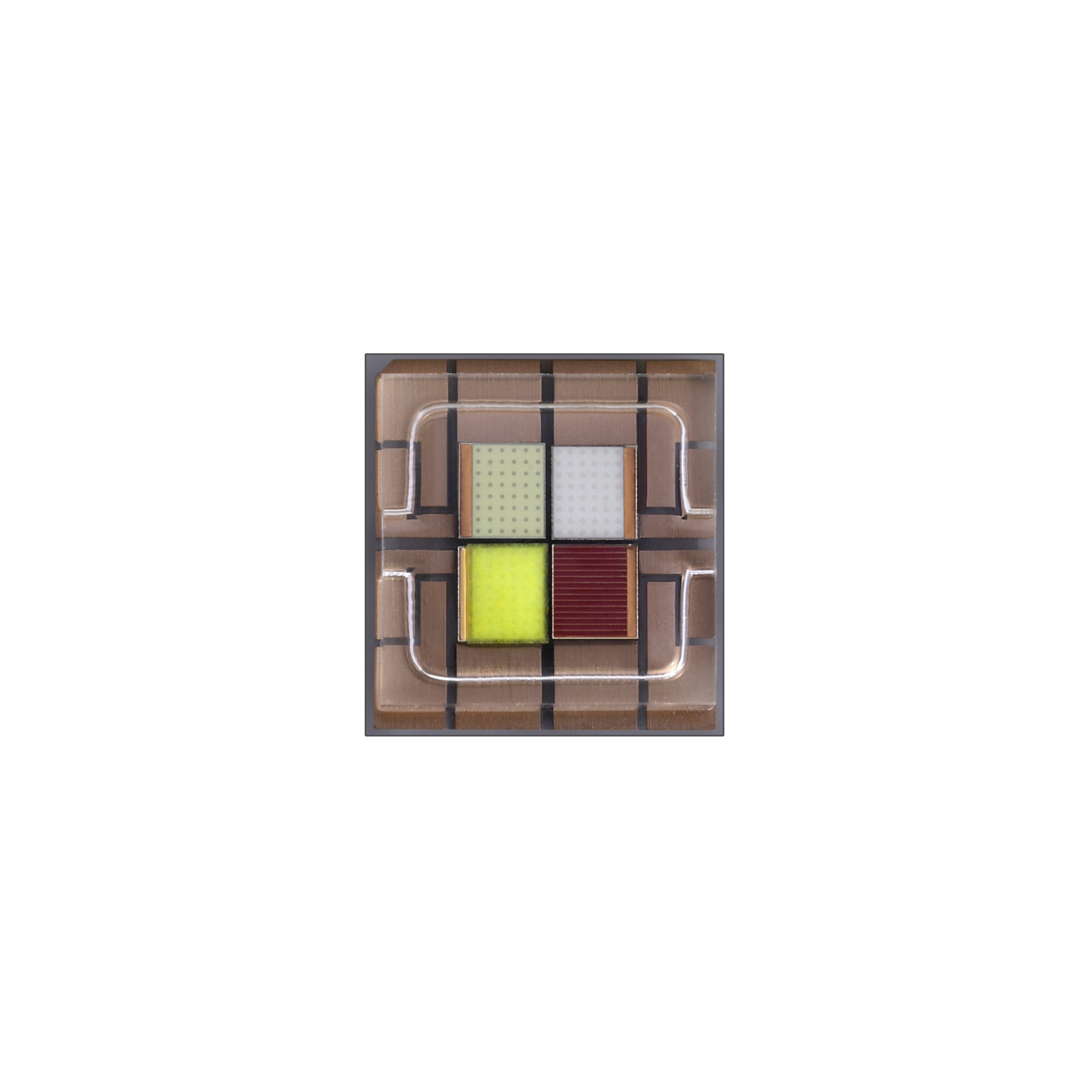

TX-6065RGBW / RGBL-60W / 90W

Home Products Product Center

Specifications

V1.1 TX-6065RGBL60FC120-NUVENG-01R WKF-FC0185[View online]
TX-6065RGBW60FC120-NUVENG-01R WKF-FC0184[View online]
V1.0 TX-6065RGBL90FC120-NUVENG-01[View online]

Relevant attachments

Flat Lens SMD LED ROHS[View online]
CERAMIC LED REACH TEST REPORT[View online]

Product Features

· Compact power LEDs, Individual quad chips,
· Vertical chips, higher thermal conductivity, easy light collection
· Ceramic PKG, eutectic-bonding, thermal isolation, fast conductivity · RGBW RGBL 4 in 1, Excellent color mixing

Application Area

Stage lighting: Beam wash, Moving head
Matrix panel lights, spot lights

RoHS REACH

Typ. Spec

Color	DWL(nm)	Lumen(lm)	Current(mA)	Voltage(V)	Ra
Red	617-627	130-145	5000	2.4-3.2	/
Green	520-530	335-375	5000	2.8-3.8	/
Blue	450-460	45-52	5000	2.8-3.8	/
White	5700-6600K	410-460	5000	2.8-3.8	70
